Best Locations for Wind Turbines in Pakistan: A Detailed Guide to Wind Potential, Cities, Corridors and Site Selection

Pakistan has significantly more wind-energy potential than is apparent from the number of small wind turbines currently installed across the country. However, wind energy is highly location-dependent. A turbine that performs well in one part of Pakistan may produce disappointing results only a few hundred kilometres away.

This is particularly important for 1kW, 2kW, 3kW, 5kW and 10kW small wind turbines, because these machines are much more sensitive to local wind conditions, tower height, turbulence and rotor size than simply looking at the turbine’s advertised rated power.

A national-scale wind-resource study using GIS and NREL wind-resource datasets identified substantial wind potential in western Balochistan, southern Sindh, mountainous areas of Khyber Pakhtunkhwa, the northern Indus Valley and parts of northern Punjab. The study estimated that about 8.89% of Pakistan’s area falls within fair-to-superb wind-energy classes, with Balochistan containing a particularly large share of the identified high-resource area.

At the same time, the Global Wind Atlas shows that wind conditions vary considerably by location and height, and emphasizes that mean wind-power density can be more informative than mean wind speed alone when evaluating a wind resource. (Global Wind Atlas)

The purpose of this guide is therefore not simply to say “Pakistan is windy”. Instead, it explains:

where Pakistan’s major wind corridors are;
which cities and districts deserve further investigation;
why Sindh and Balochistan are particularly important;
where small wind turbines may make sense;
why some apparently windy cities may still be unsuitable;
how tower height changes wind speed;
why wind power density matters;
why average wind speed alone is insufficient;
how to assess a property before purchasing a turbine;
and how to match a wind turbine to the actual site.

1. Why Location Is the Most Important Factor in Wind Energy

A wind turbine does not produce electricity simply because it is installed outdoors.

It needs sufficient moving air passing through its rotor.

The amount of power available in the wind can be expressed approximately as: $P = \frac{1}{2}\rho A V^3 C_p$

Where:

Symbol	Meaning
P	Electrical power output
ρ	Air density
A	Rotor swept area
V	Wind speed
Cp	Turbine power coefficient

The most important part for understanding location is:

Wind power increases approximately with the cube of wind speed.

That means a relatively small increase in wind speed can result in a large increase in available wind power.

For example:

Wind Speed	Relative Wind Power
3 m/s	1.00×
4 m/s	2.37×
5 m/s	4.63×
6 m/s	8.00×
7 m/s	12.70×
8 m/s	18.96×
9 m/s	27.00×
10 m/s	37.04×

This is why a 3 kW turbine installed at a strong-wind site can potentially produce considerably more annual energy than a larger turbine installed at a poor-wind site.

The U.S. Department of Energy similarly notes that wind power depends on air density, swept area and the cube of wind speed, and recommends using the turbine’s power curve, site wind distribution, tower height and micro-siting characteristics to estimate annual energy production. (The Department of Energy’s Energy.gov)

2. Pakistan’s Wind Resource Is Highly Uneven

Pakistan should not be treated as having one uniform wind resource.

There are several distinct wind-resource zones.

Broadly, the country’s more promising areas include:

Southern Sindh
Gharo–Jhimpir–Keti Bandar corridor
Karachi coastal belt
Thatta and surrounding coastal areas
Badin and parts of lower Sindh
Jamshoro and nearby corridors
Matiari and parts of central Sindh
Tando Muhammad Khan / Tando Allahyar region
Parts of Balochistan’s western corridor
Balochistan’s Makran/coastal belt
Selected mountainous areas of Khyber Pakhtunkhwa
Selected northern Punjab ridges and corridors

The important point is that these are screening areas, not automatic guarantees that every property inside them is suitable.

A scientific assessment of Pakistan’s wind resources found that coastal Sindh and northwestern valleys can have wind speeds reaching approximately 5–7 m/s at 50 m elevation, while some Balochistan areas show substantially higher wind-power-density potential.

3. The Gharo–Jhimpir Wind Corridor

If Pakistan’s wind-energy development is discussed, the Gharo–Jhimpir region of Sindh is one of the most important areas to understand.

The corridor has already attracted numerous utility-scale wind projects, which provides an important real-world indication that the region has commercially significant wind resources.

An IFC project description identifies the Gharo–Jhimpir wind corridor as containing the Gharo coastal cluster and inland Jhimpir Wind Farm Region. It also describes the region as a major concentration of operational wind projects. (IFC)

A Pakistan wind-resource study reports 6.86 m/s annual average wind speed at 50 m at Gharo, together with approximately 408.6 W/m² annual wind-power density in the referenced assessment.

Another detailed study of Gharo found site-specific mean wind speeds of approximately:

Height	Mean Wind Speed
10 m	3.85 m/s
30 m	5.85 m/s
50 m	6.89 m/s

The same study calculated increasing wind-power density with height. (Wiley Online Library)

Why does height matter so much?

Because wind generally becomes stronger and less turbulent as you move above ground-level obstacles.

That is one reason utility-scale turbines in the Jhimpir region have hub heights of around 80–90 metres or more. For example, one documented project in the corridor uses 20 turbines with 90 m hub height, while another wind project uses 80 m hub height.

4. Gharo

Gharo is one of the most studied wind locations in Pakistan.

The area is important because of:

proximity to the Arabian Sea;
open terrain;
established wind-energy infrastructure;
historical meteorological measurements;
existing transmission infrastructure;
extensive wind-farm development;
and documented wind-resource studies.

A long-term wind study describes the Gharo measurement mast and nearby wind-project areas, including the coastal Khuttikun and Bhambore areas. (ScienceDirect)

The 2023 Pakistan wind-resource study classified Gharo as a good wind-resource location in the referenced 50 m assessment.

Potential applications

Gharo is relevant for:

utility-scale wind farms;
medium commercial turbines;
agricultural applications;
industrial energy projects;
wind-solar hybrid systems;
selected small wind applications.

However, a 1kW–10kW turbine should not automatically be installed simply because the property is near Gharo. A small turbine may be mounted at only 10–30 metres, while large wind-farm data may have been measured or modelled at much greater heights.

That distinction is critical.

5. Jhimpir

Jhimpir is arguably the most recognizable wind-energy location in Pakistan because of the concentration of operating wind farms.

The region has hosted projects using turbines from major international manufacturers.

For example, IFC documentation for Artistic Wind Power describes a 50 MW project in Jhimpir using 20 Goldwind 2.5 MW turbines with 90 m hub height and 121 m rotor diameter. (IFC)

This matters for small wind because it provides something that a theoretical wind map cannot provide:

Real-world evidence of commercial wind development.

But again, utility-scale wind farms should not be used as a substitute for a small-turbine site assessment.

6. Keti Bandar

Keti Bandar is particularly important because it lies in the coastal Sindh wind-resource zone.

The wind-resource research in the supplied document identifies the main Sindh wind corridor as beginning around Keti Bandar and Mirpur Sakro in Thatta district, extending northward and connecting with areas around Hyderabad, Jamshoro and Tando Muhammad Khan.

A separate study cited in the document reported approximately:

7.16 m/s annual average wind speed at 50 m at Kati Bandar, with approximately 414 W/m² average wind-power density.

That makes Keti Bandar an important location for further wind-energy investigation. https://windturbine.pk/

Potential applications

The region may be relevant for:

agricultural pumping;
remote power;
hybrid wind-solar systems;
microgrids;
telecom installations;
coastal businesses;
medium-scale commercial wind projects;
larger wind farms.

The biggest challenge is not necessarily wind itself.

Infrastructure, roads, grid connection, logistics, foundations, maintenance access and project economics must also be considered.

7. Thatta District

Thatta is one of the most important districts for wind-energy development in Sindh.

The district contains or connects several important wind-resource areas, including:

Gharo;
Jhimpir;
Keti Bandar;
Mirpur Sakro;
surrounding coastal and inland wind corridors.

The supplied research specifically identifies Thatta as one of the Sindh districts with wind-energy potential requiring further investigation. Wind Turbine for Business in Pakistan

Why Thatta matters

Thatta combines several advantages:

coastal influence;
large open areas;
established wind projects;
proximity to Karachi;
proximity to major transmission infrastructure in parts of the corridor;
relatively open terrain;
agricultural and rural energy requirements.

For commercial wind development, however, each individual site still needs detailed assessment. Wind Turbine in Thatta

8. Karachi: Is Karachi Good for Wind Turbines?

Yes—but Karachi should not be treated as one uniform wind site.

This is one of the most important conclusions for homeowners and businesses.

Karachi includes:

dense urban areas;
high-rise buildings;
industrial zones;
coastal areas;
open land;
elevated terrain;
residential neighbourhoods;
ports and industrial corridors.

Wind conditions can therefore vary significantly from one property to another.

The national wind-resource research specifically identifies Karachi district as having wind-energy potential requiring further investigation. Wind Turbine in Karachi

Coastal Karachi

Areas closer to the Arabian Sea may benefit from:

sea breezes;
greater exposure;
fewer large obstacles;
open coastal terrain.

Potential locations requiring investigation include parts of:

Hawksbay;
Paradise Point;
coastal industrial areas;
areas around Kemari;
other exposed coastal properties.

The research document also identifies a wind corridor beginning around Kemari in Karachi and extending northwest toward Balochistan, including areas such as Hub and Sonmiani.

Urban Karachi

Urban rooftops are a different story.

A roof can be physically high but still have poor-quality wind because of:

surrounding buildings;
parapet walls;
water tanks;
trees;
antennas;
neighbouring structures;
rooftop turbulence.

A wind turbine requires clean, useful airflow, not simply wind that can be felt by a person standing on the roof.

9. Kemari and the Karachi–Balochistan Wind Corridor

One of the particularly interesting findings in the supplied research is the identification of a corridor extending from Kemari in Karachi toward Balochistan.

The study identifies areas including:

Hub;
Sonmiani;
Durji;
Hanrab;
Saroona.

as lying within this broader corridor.

This is important because it connects Karachi’s coastal wind resource with the much larger Balochistan wind-resource system.

For future wind-energy development, the Karachi–Hub–Sonmiani region deserves particular attention. Wind Turbine in Sindh and Balochistan.

10. Hub and Sonmiani

The Hub–Sonmiani area is strategically interesting because it combines:

proximity to Karachi;
coastal influence;
industrial activity;
open land in some locations;
Balochistan’s broader wind-resource potential.

For businesses located around Karachi’s western industrial belt, a wind assessment can therefore be worthwhile.

The critical question is not simply:

“Is Hub windy?”

The correct question is:

“What is the long-term wind-speed distribution at my proposed turbine hub height, at this exact location?”

That distinction can save a substantial amount of money.

11. Badin

Badin is another Sindh district identified in the supplied research as having wind-energy potential requiring further investigation.

Badin’s location in lower Sindh gives it relevance for wind-energy development, particularly where:

open land is available;
the site is exposed;
electricity demand exists;
agricultural pumping is required;
grid reliability is limited;
hybrid wind-solar systems are being considered.

Badin should therefore be treated as a site-screening region rather than an automatic recommendation for every property.

12. Tando Muhammad Khan

Tando Muhammad Khan is specifically identified in the research as one of the Sindh districts with wind-energy potential.

The research describes the broader Sindh corridor as extending toward Tando Muhammad Khan.

This makes the district relevant for:

agriculture;
irrigation;
rural energy;
commercial applications;
hybrid renewable systems;
further wind-resource investigation.

13. Tando Allahyar

Tando Allahyar is also identified among the Sindh districts where wind-energy potential deserves further investigation.

The key point is that district-level wind potential does not mean every urban or rural property will have the same wind conditions.

For example:

A turbine in an open agricultural area may experience significantly cleaner airflow than the same turbine installed among buildings.

14. Matiari City

Matiari is another district identified in the research as having wind-energy potential.

For a commercial wind project, however, transmission availability is only one part of the equation.

A complete assessment should consider:

wind resource;
land;
turbine technology;
road access;
transmission capacity;
environmental constraints;
foundation conditions;
project financing;
operation and maintenance access.

15. Jamshoro

Jamshoro is particularly interesting because the research identifies Thano Bula Khan tehsil and parts of Jamshoro district as having significant wind-power potential.

The study reports wind-power potential of up to approximately 700 W/m² at 50 m in parts of Thano Bula Khan and Thatta.

This makes Jamshoro an important region for further investigation.

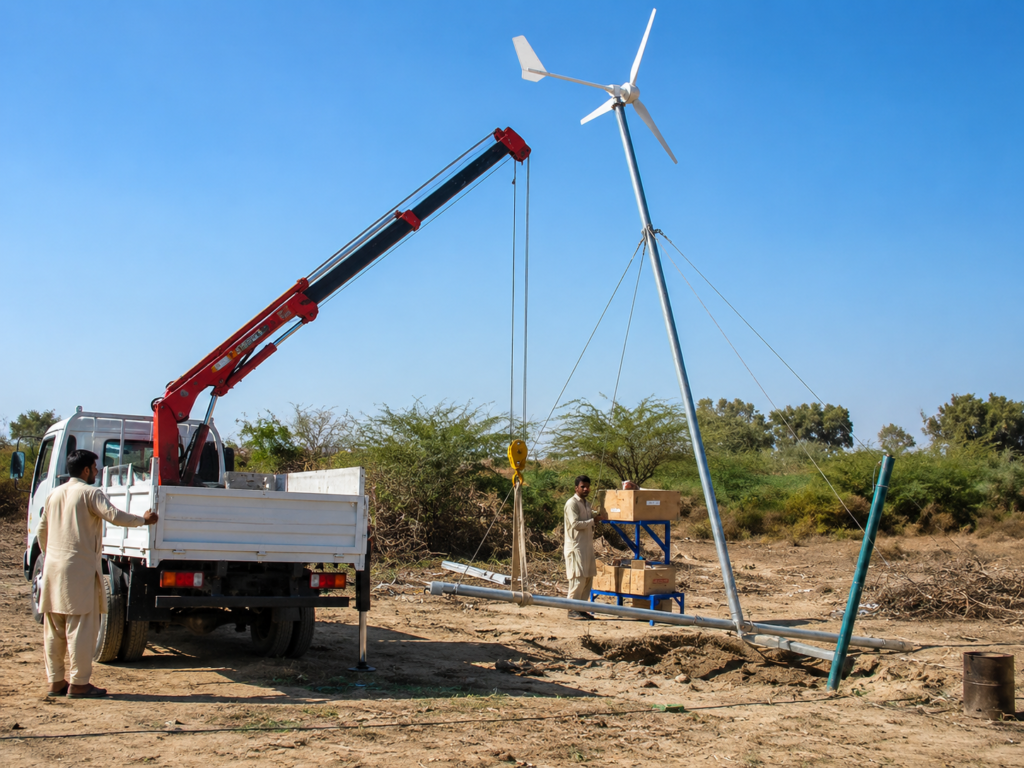

It also has a strategic advantage: Wind Turbine in Jamshoro

proximity to Karachi, Hyderabad and established electricity infrastructure.

For industrial applications, this combination can potentially be more important than wind speed alone.

16. Mirpur Khas

Mirpur Khas is included in the research list of Sindh districts requiring further investigation for wind-energy generation.

The district is not equivalent to the core Gharo–Jhimpir wind corridor, however.

Therefore, a project in Mirpur Khas should be based on location-specific wind data, rather than assuming that conditions are equivalent to Jhimpir.

17. Balochistan: Pakistan’s Major Untapped Wind Resource

Balochistan deserves special attention.

The national wind-resource study found substantial wind-resource potential across the province, including:

western Balochistan;
southern Balochistan;
coastal areas;
Chagai region;
Panjgur;
Kech;
Awaran;
Khuzdar;
parts of the Quetta-region corridors.

The research classifies Balochistan into seven wind-resource classes and reports that approximately 15% of the province’s area falls within fair-to-superb classes, based on the study’s methodology.

The same research identifies Balochistan as particularly resource-rich and highlights several major wind corridors.

18. Western Balochistan

One of the strongest findings in the document concerns the western Balochistan wind corridor.

The study reports wind-power potential reaching approximately:

900 W/m² at 50 m

in parts of the western corridor.

Areas identified include parts of:

Chagai;
Taftan;
Dalbandin;
Naukundi.

This is especially interesting for off-grid renewable energy because many remote areas have limited access to conventional electricity infrastructure.

19. Chagai

Chagai is an important example of how wind potential and energy-access challenges can overlap.

The supplied study identifies parts of Chagai district as having strong wind-power potential, including values up to approximately 900 W/m² at 50 m in selected areas.

The research also highlights the distance from the national grid and limited electricity access in parts of the district.

This creates a potentially important application:

Wind energy for remote electrification.

Instead of transporting diesel fuel over long distances, a properly designed renewable-energy system can potentially provide local electricity.

20. Taftan, Dalbandin and Naukundi

The research specifically identifies these areas in the western Balochistan wind corridor.

They are particularly interesting for:

remote communities;
telecom infrastructure;
border-area facilities;
agricultural applications where applicable;
water pumping;
hybrid wind-solar systems;
off-grid microgrids.

However, remote projects face additional challenges:

transportation;
security;
maintenance;
spare parts;
skilled technicians;
battery replacement;
communication;
grid absence.

Therefore, high wind speed alone does not automatically make a project commercially viable. Wind Turbine Price in Pakistan

21. Panjgur and Kech

The southern Balochistan corridor extends through areas including parts of:

Panjgur;
Kech;
Zamuran;
Hoshab.

The research identifies these areas as having wind-resource potential and notes that some communities in these areas have limited electricity access.

This combination makes them interesting for decentralized renewable-energy systems.

22. Awaran and Khuzdar

The research also identifies wind corridors extending through parts of:

Awaran;
Khuzdar;
surrounding areas.

These regions require careful site assessment because topography can strongly influence local wind flow.

Mountains can:

accelerate wind;
channel wind;
create turbulence;
block wind;
create strong directional flows.

Therefore, a regional wind map is only the beginning.

23. Gwadar and the Makran Coast

Gwadar is naturally interesting for wind-energy development because of its coastal location.

However, coastal location does not automatically equal commercially excellent wind conditions at every site.

A proper assessment should examine:

wind speed;
wind direction;
seasonal variation;
turbulence;
salt exposure;
extreme wind;
tower height;
corrosion;
grid availability.

For coastal turbines, corrosion protection becomes particularly important. Wind Turbine in Gawadar

24. Ormara

Ormara is another coastal Balochistan location that appears in the broader wind-resource assessment.

The research identifies Ormara among areas within Balochistan’s broader high-wind corridors.

Its coastal exposure makes it worth investigating for:

remote energy;
telecom;
coastal facilities;
hybrid systems;
medium-sized wind projects.

But the project economics must include transportation and maintenance logistics.

25. Khyber Pakhtunkhwa: Wind Potential Exists, But It Is More Site-Specific

Khyber Pakhtunkhwa is not uniformly suitable for wind turbines.

The research shows a combination of:

poor areas;
marginal areas;
fair areas;
good areas;
excellent areas;
outstanding areas;
and even small superb-resource zones.

The study reports that approximately 5.99% of Khyber Pakhtunkhwa’s area falls within fair-to-superb classes in its assessment.

This means that saying “KP is good for wind” or “KP is bad for wind” would both be oversimplifications.

26. Chitral

Mountainous areas such as Chitral can have interesting wind conditions because of:

mountain passes;
valley effects;
elevation;
channelled airflow.

But these same geographical features can create turbulence and complex wind patterns.

Therefore, a wind turbine in a mountain valley should be evaluated much more carefully than one on a flat coastal plain.

27. Upper Dir and Northern KP

Parts of northern KP have been identified as having useful wind resources.

However, the key challenge is complex terrain.

IEC site-assessment guidance emphasizes that terrain, obstacles and flow distortion can materially affect wind measurements and turbine suitability. (iTeh Standards)

This means:

A wind speed measured at one point cannot necessarily be assumed to represent a nearby turbine location in complex terrain.

28. Punjab: Why Most of the Plains Are Less Attractive for Wind

Punjab contains some wind-resource areas, but the province is dominated by relatively lower wind-resource territory.

The supplied study’s NREL-based classification reports that approximately 93.54% of Punjab’s area falls into the poor wind-power class in the referenced analysis, with only a small fraction reaching fair-to-superb classes.

This does not mean:

“Wind turbines cannot work in Punjab.”

It means:

Wind turbines require much more careful site selection in Punjab.

29. Kallar Kahar and Chakwal

Kallar Kahar–Chakwal is an example of a Punjab area with some wind potential.

The document reports a SODAR-based assessment of approximately:

293 W/m² at 50 m

and describes the resource as marginal in that assessment.

This type of location may be worth considering for:

hybrid wind-solar systems;
specialized applications;
sites with unusually strong local wind;
agricultural pumping where actual site measurements justify it.

But it should not be treated like Jhimpir.

30. What About Lahore?

Lahore is a major city with large electricity demand, but electricity demand does not mean that wind is automatically a good energy resource.

Urban Lahore presents challenges such as:

buildings;
trees;
turbulence;
low average wind speeds;
rooftop obstructions;
limited tower height.

For most Lahore properties, a wind turbine should therefore be considered only after specific wind-resource analysis.

Solar energy is often easier to deploy in low-wind urban environments, while wind can become interesting when a particular site demonstrates sufficient wind.

31. What About Islamabad and Rawalpindi?

The same principle applies.

The presence of wind on a particular day does not establish that a turbine will produce enough annual energy.

For Islamabad and Rawalpindi, terrain, buildings and local wind patterns must be considered.

A property-specific feasibility assessment should precede turbine selection.

32. Pakistan Wind-Resource Summary by Region

The following table is useful as an initial screening guide, not a guarantee of performance.

Region	Wind Potential	Main Opportunity	Key Concern
Gharo	High	Commercial & utility wind	Site-specific conditions
Jhimpir	High	Commercial, utility, industrial	Correct turbine/tower
Keti Bandar	High	Coastal & remote energy	Infrastructure
Thatta	High in selected areas	Commercial/agriculture	Local variation
Karachi Coast	Moderate–High in selected exposed areas	Small/medium wind	Urban turbulence
Kemari/Western Karachi	Site-dependent	Industrial/coastal	Buildings & obstacles
Hub	Promising in selected areas	Industrial/coastal	Site assessment
Sonmiani	Promising	Coastal/remote	Infrastructure
Badin	Promising in selected areas	Agriculture/remote	Local wind variation
Jamshoro	Promising in selected areas	Industrial/agriculture	Exact site
Matiari	Promising in selected areas	Commercial/agriculture	Exact site
Tando Muhammad Khan	Promising in selected areas	Agriculture	Site-specific data
Tando Allahyar	Promising in selected areas	Agriculture	Site-specific data
Mirpur Khas	Potential	Agriculture/hybrid	Lower certainty
Balochistan West	High in selected corridors	Utility/off-grid	Infrastructure/security
Chagai	High in selected areas	Off-grid/industrial	Remoteness
Panjgur	Promising	Remote/hybrid	Infrastructure
Kech	Promising	Off-grid	Terrain/logistics
Ormara	Coastal potential	Remote/coastal	Logistics
Gwadar	Coastal potential	Commercial/remote	Site-specific resource
KP Mountains	Selected promising areas	Hybrid/off-grid	Complex terrain
Punjab Plains	Mostly low	Solar/hybrid	Low wind resource

The underlying research explicitly identifies multiple Sindh districts—including Karachi, Thatta, Tando Muhammad Khan, Tando Allahyar, Badin, Mirpur Khas, Matiari and Jamshoro—for further wind-energy investigation.

33. Top Wind-Energy Areas to Investigate in Pakistan

Rather than claiming that every city has an identical wind resource, it is more scientifically useful to identify priority areas for investigation.

Group1- Established High-Wind Corridors

Gharo
Jhimpir
Keti Bandar
Mirpur Sakro
Thatta wind corridor
Selected areas of Thano Bula Khan
Western Balochistan wind corridor

This is on number 2 — Coastal and Near-Coastal Areas

Karachi coastal belt
Kemari
Hub
Sonmiani
Badin coastal areas
Gwadar
Ormara
Makran coastal areas

Priority Group C — Inland Sindh Areas Requiring Site Investigation

Jamshoro
Matiari
Tando Muhammad Khan
Tando Allahyar
Mirpur Khas

Priority Group D — Selected Mountain/Interior Areas

Chagai
Dalbandin
Taftan
Naukundi
Panjgur
Kech
Awaran
Khuzdar
selected northern KP valleys/ridges
selected northern Punjab ridges

This is a resource-screening list, not a definitive ranking. Actual suitability depends on the turbine hub height, power curve, terrain, turbulence, land, grid and economics.

34. Wind Speed Alone Is Not Enough

One of the biggest mistakes in wind-energy planning is to ask:

“What is the average wind speed?”

and stop there.

A proper wind assessment should investigate:

average wind speed;
hourly distribution;
monthly distribution;
seasonal variation;
wind direction;
wind-power density;
turbulence;
extreme wind;
wind shear;
terrain;
obstacles;
hub height;
turbine power curve.

IEC site-suitability guidance emphasizes that wind-speed distribution is important because it determines how frequently different operating and loading conditions occur. It also recommends considering long-term representative data and vertical and horizontal extrapolation to the proposed turbine location and hub height. (iTeh Standards)

35. Why Wind Distribution Matters

Imagine two locations:

Location A

Average wind speed:

5.5 m/s

Location B

Average wind speed:

5.5 m/s

They sound identical.

But suppose Location A has:

mostly 5–6 m/s wind throughout the year.

while Location B has:

very little wind for several months;
extremely strong wind for a few months.

Their annual energy production may be very different.

This is why a professional assessment should examine the wind-speed frequency distribution, not just one annual average.

36. Wind Power Density

Wind-power density is another valuable parameter.

It measures the available wind power passing through a unit area.

The supplied Pakistan research uses wind-power-density classes such as:

Class	Wind Power Density
Poor	0–200 W/m²
Marginal	200–300 W/m²
Fair	300–400 W/m²
Good	400–500 W/m²
Excellent	500–600 W/m²
Outstanding	600–800 W/m²
Superb	>800 W/m²

This classification is particularly useful when comparing locations.

37. Why Tower Height Changes Everything

Wind speed generally increases with height.

A simplified wind-shear equation is: $V(z)=V_{ref}\left(\frac{z}{z_{ref}}\right)^\alpha$

where:

$V(z)$ = wind speed at the new height;
$V_{ref}$ = measured/reference wind speed;
$z$ = new height;
$z_{ref}$ = reference height;
$\alpha$ = wind-shear exponent.

IEC material describes wind shear as the change in wind speed with height and uses the power-law relationship for wind-profile modelling. (iTeh Standards)

Example

Suppose wind speed at 10 m is:

4 m/s

If the same location has:

6 m/s at 50 m

that is a huge difference in available wind energy.

This is why installing a turbine only a few metres above a roof can produce very different results from installing it on a properly designed tower.

38. Small Wind Turbine Tower Height

For small wind turbines, tower height should be determined from:

rotor diameter;
nearby obstacles;
wind shear;
turbulence;
structural requirements;
property constraints;
local regulations;
foundation requirements.

A small turbine should not be mounted at an arbitrary height simply because the tower is cheaper.

The tower is part of the energy system.

A better turbine at the wrong height can produce less annual energy than a smaller turbine installed correctly.

39. Rooftop Wind Turbines: A Special Warning

Rooftop wind turbines look attractive because the roof provides height.

But the roof also creates turbulence.

Air flowing around a building can:

separate;
swirl;
accelerate;
reverse;
become turbulent.

A turbine requires relatively clean airflow.

Therefore, a roof-mounted turbine should be considered only after checking:

building height;
surrounding buildings;
roof structure;
turbine position;
vibration;
noise;
maintenance access;
structural loads;
wind direction;
turbulence.

40. Why Horizontal-Axis Wind Turbines Are Commonly Used

Most commercial wind turbines use a horizontal-axis configuration.

A horizontal-axis wind turbine typically has:

rotor blades;
hub;
generator;
nacelle;
yaw system;
tower;
controller;
electrical system.

The rotor faces the wind and captures energy across its swept area.

For a rotor diameter $D$ : $A=\frac{\pi D^2}{4}$

Therefore, rotor size is extremely important.

41. Rated Power Does Not Mean Constant Power

A turbine advertised as:

“3 kW wind turbine”

does not mean it continuously produces 3 kW.

The turbine may produce:

almost nothing at very low wind speeds;
a few hundred watts at moderate wind speeds;
1–2 kW at higher speeds;
rated power only around its rated wind speed;
zero production above its cut-out speed.

This is why the power curve is more useful than the headline “3 kW” number.

IEC power-performance standards define a measured power curve as the relationship between measured wind speed and turbine output under a specified measurement procedure. Small Windmill or Wind Turbine in Pakistan

42. What Is a Power Curve?

A simplified example:

Wind Speed	Example Turbine Output
2 m/s	0 W
3 m/s	50 W
4 m/s	150 W
5 m/s	350 W
6 m/s	700 W
7 m/s	1,200 W
8 m/s	1,800 W
9 m/s	2,500 W
10 m/s	3,000 W
11 m/s	3,000 W

This is only an illustrative example—not the power curve of a specific turbine.

When buying a turbine, always ask the manufacturer for the actual power curve.

43. The Difference Between kW and kWh

This distinction is essential.

kW = Power

It tells you the instantaneous rate of electricity production.

kWh = Energy

It tells you how much electricity was produced over time.

For example:

A turbine producing an average of 1 kW for 10 hours produces:

10 kWh

The U.S. Department of Energy identifies annual energy output in kWh/year as one of the most useful measures for determining whether a particular wind turbine and tower will actually meet an energy requirement. (The Department of Energy’s Energy.gov)

44. Annual Energy Production Is the Real Number to Compare

Suppose:

Turbine A

Rated power: 3 kW
Annual production: 5,000 kWh

Turbine B

Rated power: 5 kW
Annual production: 4,000 kWh

The 5 kW turbine is larger by nameplate rating, but the 3 kW turbine produces more annual energy at the particular site.

This illustrates a fundamental rule:

Do not select a wind turbine based on rated kW alone.

45. Small Wind Turbine Site-Assessment Checklist

Before purchasing a turbine, collect:

Parameter	Why It Matters
GPS coordinates	Exact location
Elevation	Air density and terrain
Average wind speed	Initial resource estimate
Hourly wind data	Energy modelling
Monthly wind data	Seasonal behaviour
Wind direction	Turbine placement
Wind-power density	Resource quality
Wind shear	Tower-height calculation
Turbulence	Energy and turbine loading
Extreme wind	Structural safety
Terrain	Flow modelling
Obstacles	Turbulence and blockage
Hub height	Actual turbine wind resource
Rotor diameter	Energy capture
Power curve	Expected output
Cut-in speed	Low-wind behaviour
Rated wind speed	Rating interpretation
Cut-out speed	Safety
Survival wind speed	Structural design
Grid connection	Electrical integration
Battery requirement	Off-grid design
Foundation	Structural safety

46. What Data Should Be Used?

For preliminary feasibility, sources such as:

Global Wind Atlas;
NASA POWER;
NREL datasets;
Pakistan Meteorological Department data;
published research;
historical weather data;

can be useful.

The Global Wind Atlas provides wind-speed and wind-power-density layers at multiple heights and allows users to investigate specific areas.

But preliminary resource mapping should not be confused with a bankable wind-resource assessment.

For larger projects, on-site measurement and long-term correlation become increasingly important.

47. Why GPS-Based Feasibility Is Better Than City-Based Recommendations

Consider a customer who says:

“I live in Karachi. Which wind turbine should I buy?”

The answer should not immediately be:

“Buy a 3 kW turbine.”

Instead, the first questions should be:

Where exactly is the property?
What is the GPS location?
How tall can the tower be?
Is it coastal or inland?
What is around the property?
What is the customer’s electricity consumption?
Is the system on-grid or off-grid?
Is battery storage required?
What is the desired annual energy production?

Two Karachi properties may have very different wind conditions.

48. Wind + Solar Hybrid Systems in Pakistan

Pakistan is particularly interesting for hybrid renewable systems.

Solar energy is available during daylight.

Wind may produce:

during the evening;
at night;
during cloudy periods;
during seasonal wind events.

Therefore:

Solar + Wind + Battery

can potentially provide a more balanced renewable-energy system than either technology alone.

However, the system must be electrically compatible.

A hybrid system may include:

solar PV;
wind turbine;
wind controller;
dump load;
MPPT controller;
battery bank;
hybrid inverter;
protection equipment;
grid connection where applicable.

49. Best Locations for Wind + Solar Hybrid Systems

Hybrid systems can be particularly interesting in:

coastal Sindh;
rural Sindh;
Balochistan;
remote KP;
agricultural areas;
areas with weak grid infrastructure;
telecom installations;
remote pumping applications.

The concept is simple:

Daytime:

Solar contributes strongly.

Evening/night:

Wind may continue producing electricity if sufficient wind is available.

Low solar days:

Wind can provide additional energy.

High-wind periods:

Excess wind can charge batteries or support other loads.

But this only works if the wind resource is actually strong enough.

50. Wind Energy for Agriculture in Pakistan

Agriculture is one of the most interesting applications for small and medium wind turbines.

Potential applications include:

water pumping;
livestock facilities;
farm lighting;
cold storage;
irrigation support;
remote farmhouses;
agricultural processing.

Sindh and Balochistan are especially interesting because of the combination of:

open land;
wind corridors;
agricultural activity;
remote communities;
unreliable electricity in some locations.

A wind turbine for pumping can sometimes be designed differently from a household electricity system.

51. Wind Turbines for Remote Areas

Remote Pakistan has an important wind-energy opportunity.

A conventional grid extension may require:

poles;
cables;
transformers;
substations;
roads;
maintenance.

In remote areas, distributed generation can potentially be more practical.

A system could consist of:

Wind Turbine → Controller → Battery → Inverter → Local Loads

or:

Wind + Solar → Hybrid Controller → Battery → Inverter → Local Microgrid

This is particularly relevant to parts of Balochistan identified in the research as having both wind potential and limited electricity access.

52. Why Balochistan Could Be Important for Off-Grid Wind

Balochistan’s wind potential is interesting not only because of resource quality.

It is also interesting because of the geographical distribution of population and infrastructure.

Some communities are far from major electricity networks.

A decentralized energy model could therefore potentially combine:

wind;
solar;
batteries;
local microgrids;
water pumping;
telecommunications.

This is an area where wind energy can be considered not merely as an alternative electricity source but as part of a broader rural-energy strategy.

53. Infrastructure Matters as Much as Wind

A location with excellent wind but no practical access can be less attractive than a location with slightly lower wind but excellent infrastructure.

For commercial projects, consider:

Factor	Importance
Wind resource	Very high
Land availability	Very high
Grid connection	Very high
Road access	High
Distance to port	High
Security	High
Foundation conditions	High
Environmental constraints	High
O&M access	High
Local workforce	Medium–High
Transmission capacity	Very high
Project financing	Very high

The supplied research itself notes that site selection should consider wind speed, electrification, grid connectivity, policy incentives and security conditions rather than relying on wind speed alone.

54. Wind Turbine Site Selection: A Practical 10-Step Process

Step 1 — Get GPS coordinates

Do not begin with the turbine.

Begin with the site.

Step 2 — Screen the wind resource

Use available wind maps and historical data.

Step 3 — Determine proposed tower height

A 10 m turbine and a 30 m turbine are not seeing exactly the same wind resource.

Step 4 — Study obstacles

Identify:

buildings;
trees;
hills;
towers;
walls;
other turbines.

Step 5 — Study wind direction

Determine prevailing wind directions.

Step 6 — Obtain the turbine power curve

Never rely only on rated power.

Step 7 — Calculate annual energy

Estimate kWh/year.

Step 8 — Design electrical system

Determine:

voltage;
controller;
inverter;
battery;
dump load;
grid connection.

Step 9 — Design tower and foundation

Consider:

turbine weight;
rotor diameter;
thrust;
extreme wind;
guy wires;
foundation;
soil.

Step 10 — Calculate project economics

Compare:

capital cost;
installation;
maintenance;
replacement;
annual kWh;
electricity value. Wind Mill cost in Pakistan

55. A Wind Turbine Should Be Selected After the Site

This is perhaps the most important principle in this entire article.

Wrong approach:

Buy turbine → find location → try to make it work

Better approach:

Study location → understand wind → determine energy requirement → select turbine → design tower → design electrical system

The second approach reduces the risk of purchasing a turbine that is technically impressive but poorly matched to the site.

56. How to Choose Between 1kW, 2kW, 3kW, 5kW and 10kW

Turbine	Typical Application
300–500W	Lighting, battery charging, small loads
1kW	Small loads, remote systems, hybrid systems
2kW	Larger residential/remote applications
3kW	Residential/small commercial
5kW	Larger homes, farms, small businesses
10kW	Commercial, agricultural, institutional
20kW+	Larger commercial/microgrid
50–100kW	Industrial/commercial
500kW+	Utility-scale projects

These are application categories, not guarantees of what each turbine can power.

Actual output depends on:

wind + rotor + power curve + tower + electrical system + availability.

57. The Importance of Rotor Diameter

Two turbines can both be advertised as 3 kW while having very different rotor diameters.

This matters because: $A=\frac{\pi D^2}{4}$

If rotor diameter increases, swept area increases with the square of diameter.

For example:

Rotor Diameter	Swept Area
2 m	3.14 m²
3 m	7.07 m²
4 m	12.57 m²
5 m	19.63 m²
6 m	28.27 m²

A larger rotor can capture more energy at the same wind speed, although the generator, structural design and turbine control must all be matched to the rotor.

58. Why “Low Cut-In Speed” Can Be Misleading

A manufacturer may advertise:

“Cut-in wind speed: 2 m/s”

This does not mean:

“The turbine produces useful electricity at 2 m/s.”

Cut-in simply means that the turbine begins producing measurable power.

Useful output may require substantially higher wind speed.

Therefore, ask for the actual power curve from 2 m/s onward.

59. Important Documents to Request from a Wind Turbine Supplier

Before purchasing a commercial turbine, ask for:

Document	Purpose
Technical datasheet	Basic specifications
Power curve	Energy estimation
Rotor drawing	Mechanical assessment
Generator specification	Electrical design
Controller datasheet	Compatibility
Inverter specification	Grid/off-grid integration
Tower drawing	Structural design
Foundation requirements	Civil works
Survival wind speed	Safety
Cut-in speed	Low-wind operation
Rated wind speed	Rated output
Cut-out speed	Protection
RPM range	Generator/rotor matching
Warranty	Commercial protection
Installation manual	Installation
Maintenance manual	O&M
Type Test report	Technical verification
IEC documentation	Standards compliance
Quality certificates	Manufacturing quality
Material specifications	Structural quality
Bearing specifications	Reliability
Brake/protection system	Safety

For larger turbines, technical documentation becomes even more important.

60. Small Wind Turbine vs Utility-Scale Wind Turbine

A major misunderstanding is assuming that the wind data used for a 50 MW wind farm directly represents the output of a 3 kW turbine.

It does not.

Consider:

Parameter	Small Turbine	Utility Turbine
Rotor	Small	Very large
Tower	~10–40 m commonly	80–150 m+
Wind resource	Highly local	Large-area assessment
Turbulence	Very important	Important
Obstacles	Major issue	Usually limited
Foundation	Small	Massive
Grid	Local	High-voltage
Energy model	Site-specific	Bankable assessment
Maintenance	Local	Specialist
Output	kW	MW

This is why a successful utility wind farm near a city does not automatically mean a residential wind turbine will perform well at every nearby property.

61. Pakistan’s Wind Resource Should Be Viewed as a Spectrum

There is no single:

“best wind city in Pakistan.”

Instead, there are:

major wind corridors;
coastal zones;
inland corridors;
mountain corridors;
urban wind environments;
agricultural wind sites;
remote off-grid areas.

The most appropriate turbine depends on the application.

For example:

A coastal farm

may benefit from a 5–20 kW turbine.

A Karachi industrial site

may need a 10–100 kW assessment.

A remote Balochistan village

may benefit from a wind-solar-battery microgrid.

A Lahore home

may find that wind is not sufficiently strong and consistent at the available tower height.

62. Why Recent Data Matters

Historical wind studies are extremely valuable, but wind-resource assessment should not rely blindly on old data.

Wind conditions can be affected by:

land-use changes;
buildings;
vegetation;
urbanization;
climate variability;
nearby infrastructure;
changes in measurement height.

IEC 61400-15 guidance emphasizes that wind distributions used for site suitability should be representative of the turbine’s operational lifetime and that long-term adjustment may be required where data is not representative.

Therefore:

Old wind data is useful—but recent site-specific verification is better.

63. Wind Turbine Installation in Pakistan: A Practical Decision Matrix

Site Type	Wind Assessment	Typical Recommendation
Open coastal land	Usually worthwhile	Detailed feasibility
Gharo/Jhimpir corridor	Strong candidate	Detailed technical assessment
Open agricultural Sindh	Worth investigating	Wind + solar assessment
Karachi coastal property	Worth investigating	GPS/site assessment
Dense Karachi rooftop	High caution	Structural + turbulence assessment
Balochistan remote area	Highly interesting	Wind + solar + battery
Mountain valley	Highly site-specific	Detailed measurement
Lahore urban area	Usually requires strong evidence	Solar/wind comparison
Punjab open land	Site-specific	Preliminary screening first
Remote telecom site	Potentially useful	Hybrid system assessment

64. What Makes a Site “Excellent” for a Wind Turbine?

A strong site typically combines:

1. Good wind

Preferably strong and consistent rather than occasional gusts.

2. Open terrain

Fewer obstacles mean cleaner airflow.

3. Adequate tower height

The rotor needs access to useful wind.

4. Suitable turbine

The turbine’s power curve should match the site’s wind distribution.

5. Suitable land

Enough space for tower, foundation, guy wires and maintenance.

6. Good electrical connection

For grid-connected projects, the electrical system must be compatible.

7. Good access

Technicians must be able to reach the turbine.

8. Acceptable extreme winds

The turbine must be designed for the site’s extreme conditions.

9. Economically useful energy

The annual kWh must justify the investment.

65. What Makes a Site Poor?

A site may be unsuitable if it has:

low average wind speed;
highly turbulent wind;
buildings surrounding the turbine;
insufficient tower height;
poor access;
weak structure;
unsuitable soil;
extreme wind beyond turbine design limits;
no practical electrical integration;
insufficient annual energy production.

66. The Role of Wind Direction

Wind direction matters because it determines how the turbine experiences airflow.

A location may have:

dominant southwest winds;
seasonal northeast winds;
sea breezes;
mountain-valley winds.

Understanding the wind rose can help determine:

turbine orientation;
turbine spacing;
obstacle effects;
wake losses;
micro-siting.

67. Wind Turbine Spacing for Larger Projects

For multiple turbines, turbines should not simply be installed next to each other.

A turbine extracts energy from the wind and leaves a wake behind it.

The next turbine placed inside that wake can experience:

lower wind speed;
higher turbulence;
reduced energy production.

Large wind projects therefore require detailed wind-flow and wake analysis.

This is another reason why utility-scale site planning is very different from installing one small turbine.

68. Pakistan’s Coastal Advantage

Pakistan has a long coastline along the Arabian Sea.

This creates potentially valuable wind resources in:

Sindh;
Karachi;
Thatta;
Badin;
Balochistan;
Makran.

The research supplied with this project specifically identifies coastal Sindh as a major wind-resource region and also identifies significant Balochistan corridors.

69. Why Existing Wind Farms Matter

Existing wind farms provide useful evidence.

The Jhimpir/Gharo region has attracted many large projects over the years.

The documented projects include turbines from manufacturers such as:

Goldwind;
GE;
Nordex;
Vestas;
Siemens Gamesa.

For example, a documented 50 MW Artistic Energy project in Jhimpir uses 29 GE turbines, while another documented project uses 33 Nordex 1.5 MW turbines. (General Electric)

This concentration of development demonstrates the commercial importance of the region.

70. But Existing Wind Farms Do Not Replace Site Assessment

Even inside Jhimpir:

Site A ≠ Site B

Wind can vary due to:

terrain;
elevation;
roughness;
wind direction;
obstacles;
distance from coastline;
wake effects.

Therefore:

Regional wind map = screening

Site assessment = project decision

This distinction should be made clear to every customer considering a wind turbine.

71. A Practical Wind-Turbine Buying Formula

Before purchasing a turbine, ask:

Wind

How much wind do I actually have?

Height

At what height will my turbine operate?

Rotor

How large is the rotor?

Power curve

How much power does it produce at my actual wind speeds?

Energy

How many kWh/year will it produce?

Electrical system

How will that energy reach my loads?

Tower

Is the tower structurally suitable?

Safety

What is the survival wind speed?

Economics

What is the cost per useful kWh?

72. Final Site-Selection Checklist for Pakistan

Before ordering a wind turbine, confirm all of the following:

#	Question	Status
1	GPS location available?	☐
2	Wind-resource data checked?	☐
3	Wind speed at proposed hub height estimated?	☐
4	Wind direction analysed?	☐
5	Seasonal variation checked?	☐
6	Wind-power density checked?	☐
7	Turbulence considered?	☐
8	Nearby obstacles identified?	☐
9	Rotor diameter known?	☐
10	Manufacturer power curve available?	☐
11	Annual kWh estimated?	☐
12	Tower height determined?	☐
13	Foundation designed?	☐
14	Survival wind speed checked?	☐
15	Controller selected?	☐
16	Inverter compatibility checked?	☐
17	Battery requirement calculated?	☐
18	Grid connection considered?	☐
19	Installation cost calculated?	☐
20	Maintenance plan prepared?	☐
21	Annual energy value calculated?	☐
22	Project economics checked?	☐

73. The Most Important Takeaway

Pakistan has significant wind-energy resources, but wind turbines should not be selected simply according to city name or turbine size.

The strongest documented wind-energy development is concentrated in areas such as the Gharo–Jhimpir corridor and other parts of southern Sindh, while research also identifies substantial potential in Balochistan, selected areas of KP and smaller wind-resource corridors elsewhere in the country.

For a customer looking to install a 1kW, 2kW, 3kW, 5kW or 10kW turbine, the correct process is:

Location → Wind Assessment → Tower Height → Energy Requirement → Power Curve → Turbine Selection → Electrical Design → Installation

Not:

Turbine → Installation → Hope for good wind

The difference between these two approaches can determine whether a wind project becomes a useful energy asset or an expensive underperforming installation.

74. Best Areas for Different Wind-Turbine Applications

Application	Areas Worth Investigating
Small residential wind	Coastal Karachi, exposed Sindh properties
1–3 kW hybrid systems	Coastal/lower Sindh, selected Balochistan sites
5–10 kW farms	Sindh coastal/open agricultural areas
10–50 kW commercial	Sindh wind corridors, selected Balochistan
50–500 kW projects	Strong documented wind corridors
Utility-scale	Gharo–Jhimpir and other professionally assessed corridors
Remote microgrids	Balochistan, remote Sindh, selected KP
Agricultural pumping	Open windy agricultural sites
Telecom/off-grid	Remote windy locations
Wind + solar hybrid	Areas with complementary wind and solar profiles

75. Frequently Asked Questions

What is the best location for a wind turbine in Pakistan?

The answer depends on turbine size and application. The Gharo–Jhimpir region of Sindh is one of Pakistan’s most established commercial wind-energy areas, while several parts of Balochistan also have significant wind-resource potential. Individual properties still require site assessment. (IFC)

Is Karachi suitable for wind turbines?

Some parts of Karachi can be suitable, particularly exposed coastal and open areas. Urban rooftops are much more site-sensitive because buildings can create turbulence.

Is Jhimpir suitable for small wind turbines?

The region has a strong documented wind resource, but small-turbine suitability still depends on the proposed tower height, rotor, turbine power curve and exact location.

Is Gharo good for wind energy?

Yes, Gharo is a well-studied and established wind-energy area. A referenced assessment reports approximately 6.86 m/s annual average wind speed at 50 m and approximately 408.6 W/m² power density.

Is Balochistan good for wind turbines?

Several areas of Balochistan have substantial wind potential. The supplied research identifies western, southern and northern wind corridors, including areas around Chagai, Taftan, Dalbandin, Panjgur, Kech, Awaran and other regions.

Can wind turbines work in Lahore?

They can technically operate if sufficient wind is available, but many urban Punjab sites have relatively weaker wind resources. A site-specific feasibility assessment is recommended before investment.

What wind speed is needed for a wind turbine?

There is no single number that applies to every turbine. The manufacturer’s power curve and the site’s long-term wind distribution are more useful than a generic cut-in speed.

Is 5 m/s enough for a wind turbine?

It depends on the turbine. A 5 m/s annual average can be useful for some turbines, but the result depends heavily on rotor size, power curve, tower height and wind distribution.

Is 7 m/s good for wind energy?

A 7 m/s annual average at the relevant hub height generally represents a substantially stronger wind resource than 4–5 m/s, but the exact energy output still depends on the turbine and site.

Should I install a wind turbine on my roof?

Only after assessing turbulence, structural strength, tower/rotor position and actual wind conditions. Where sufficient land is available, a properly designed ground-mounted tower may provide cleaner airflow.

Is wind better than solar in Pakistan?

Neither technology is universally better. Solar is generally easier to deploy across many parts of Pakistan, while wind can be highly valuable in locations with strong and consistent wind. In suitable locations, wind + solar can complement each other.

76. Recommended Internal Links for WindTurbine.pk

For SEO, this article can be connected naturally to your existing website content:

Conclusion

Pakistan has a diverse and geographically concentrated wind resource.

The Gharo–Jhimpir–Keti Bandar region of Sindh is particularly important because it combines documented wind resources with extensive real-world wind-farm development. Karachi’s coastal areas, parts of Thatta, Badin, Jamshoro, Matiari and the Tando districts also warrant investigation. Meanwhile, Balochistan contains several major wind corridors, including areas in its western and southern regions that may be particularly relevant for future utility-scale and off-grid renewable-energy development.

The most important lesson for anyone buying a wind turbine in Pakistan is simple:

Do not select the turbine first. Select the site first.

A good wind turbine requires:

Good wind + correct hub height + suitable rotor + verified power curve + appropriate tower + proper electrical system + professional installation.

For homeowners and businesses, the first step should therefore be a location-specific wind feasibility assessment, preferably using the property’s GPS coordinates and the proposed turbine height.

That approach is far more reliable than choosing a turbine simply because a particular city is known as a “windy area.”
wind Turbine Price in Pakistan Wind Turbine Price in Pakistan
